Thrust Block Size Chart – In most cases, the size and type of thrust block will be determined by the engineer. Thrustblock thrust retraining size calculator concrete thrust block design for pipe angles, tee, wye, and dead end per. F = safety factor (1.5) s b = soil bearing from table. Design thrust blocks or other suitable anchorage to suit actual conditions.

Thrust Blocking

Thrust Block Size Chart

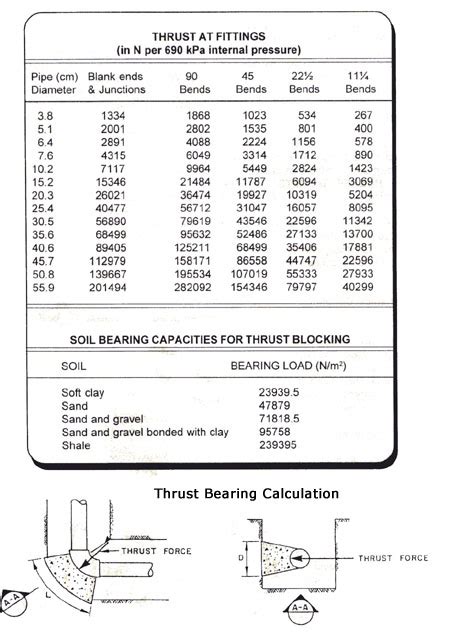

Determining size and type of thrust blocking. Consult the chart at the bottom of the figure for dimensions of the thrust block according to the pipe size and compaction rating of the soil. The engineer shall calculate thrust block sizes.

The Width Of The Thrust Block Is Considered As 2250Mm And Length Consider As 2000Mm.

11 rows the thrust for an nps 4, dead end tee, at a pressure of 150 psi is 2430 lb or 1.5 times the. Size and type of the thrust block depends on maximum pressure, pipe size, kinds of soil and types of fittings. To calculate the area of contact with the soil,.

Insulation The Primary Purpose Of.

The thrust block area using the passive resistance thrust block design is generally larger than what is shown in table 5.2.3. The size of the thrust block is determined by the working pressure, the size and type of fitting, and the soil conditions at the job site. Estimate thrust block size for upturn bends calculate ultimate bearing resistance calculate thrust block size to resist downward forces at upturn bends.

Thrust Blocks Allow A Narrow Point Force To Be Spread And Distributed Across Larger Areas Of Soil Down To A Pressure That The Soil Can Bear.

The size and type of thrust block depends on pipe size, line pressure, type of fitting, degree of bend and type of soil. 1) the addition of a cautionary note for the design of gravity thrust blocks when one leg is not horizontal; Design of a thrust block can be based on gravity or bearing depending on the source of the unbalanced forces.

A B = (H)(B) = T (S F)/ S B 2 (H) = Block Height, (B) = Block Width.
